SINOLANC CAPILLARY TUBE MATS TECHNICAL DATA

System Components and Complete Solutions

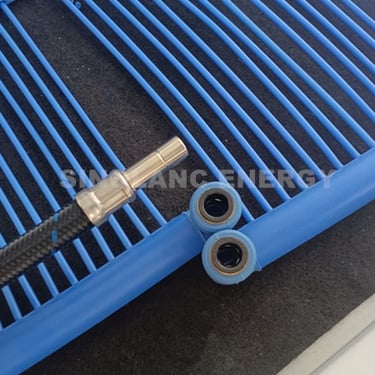

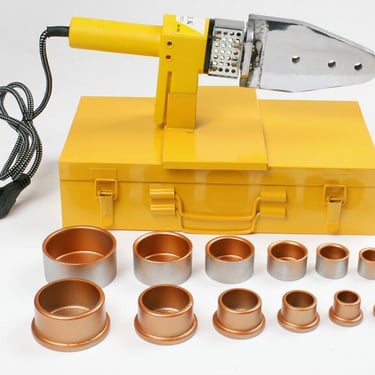

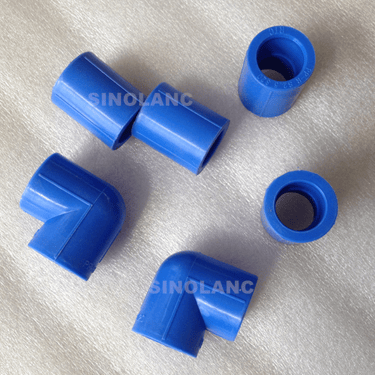

Sinolanc produces matching PPR main pipes, traditional hot-melt welded fittings, quick connectors, and flexible connections. With strong partnerships and unique comprehensive experience, we are committed to designing and providing customers with complete system solutions.

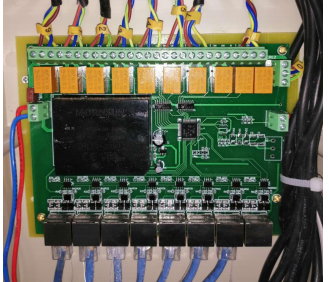

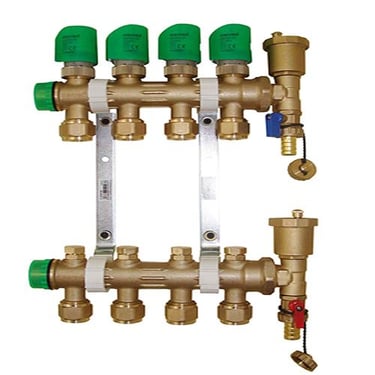

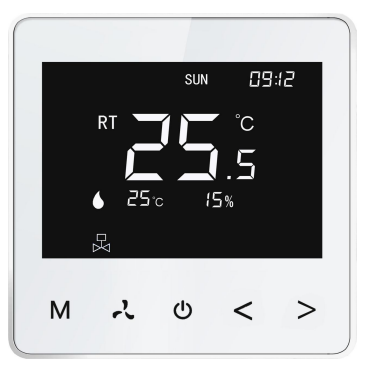

These include heating and cooling source units, automated temperature and humidity control systems, distribution station systems, piping systems, and fresh air systems for both corporate and retail customers.

Our goal is to make the system smarter, easier to install & maintain, and more energy-efficient by offering customized configurations and solutions

Capillary Tube Mats System
Working Principle

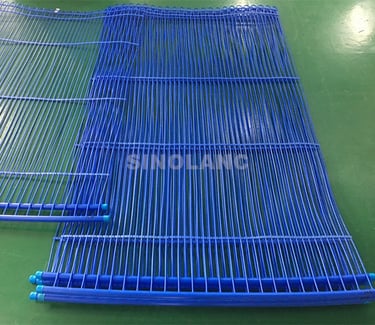

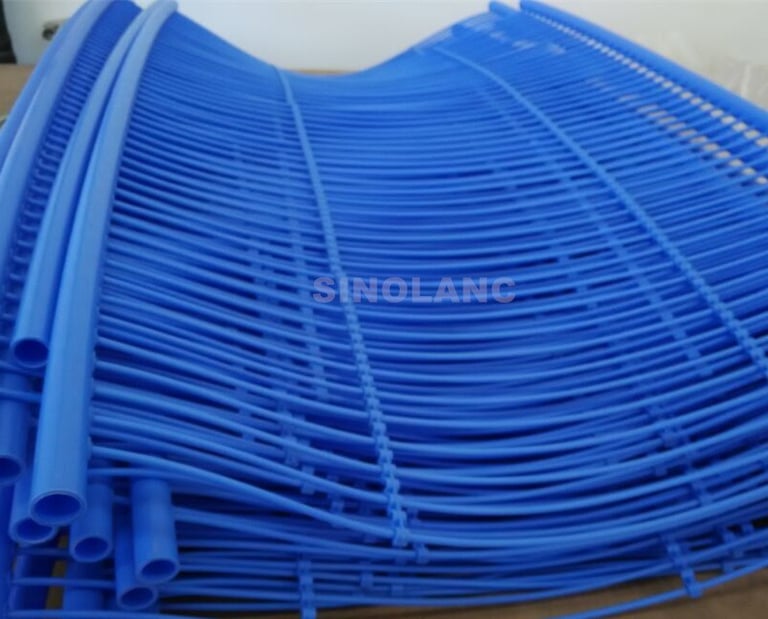

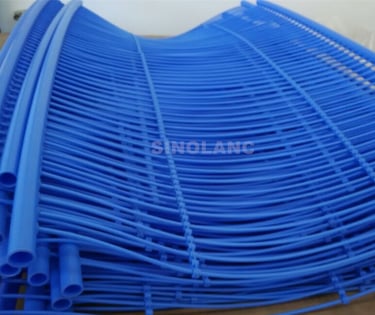

Capillary tube mats technology takes a completely new approach and follows nature’s example. The heart of system lies in the capillary mats that contain thin polypropylene pipes through which water constantly flows.

Owing to their small diameter, the capillary tube mats offer a significantly greater heat exchange surface and they can be embedded close to the surface of ceilings, floor and walls, transforming these building components into easily adjustable cooling and heating surfaces and only require low temperature changes to have a large impact.

The transfer of energy between users and the activated surfaces is achieved predominantly using radiation – matching the natural conditions for regulation of the heat balance of all living organisms.

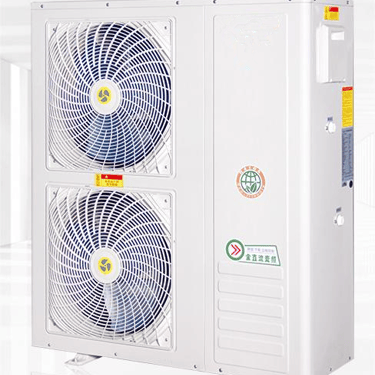

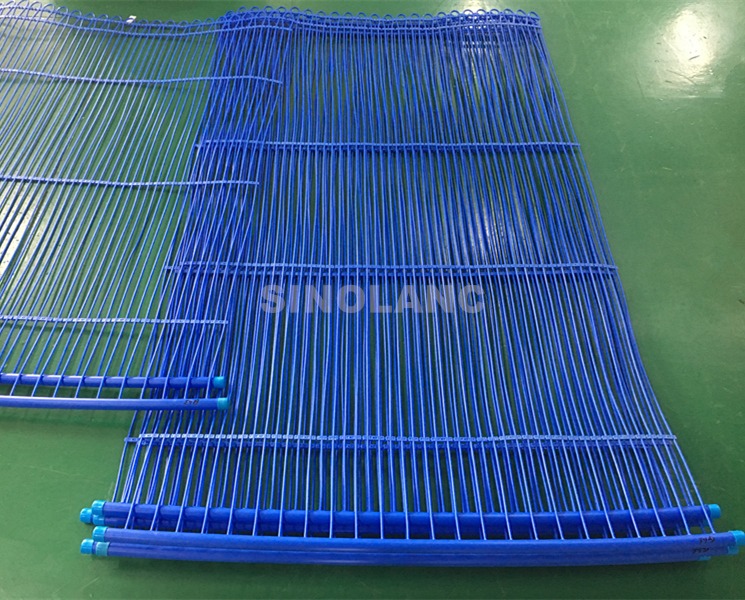

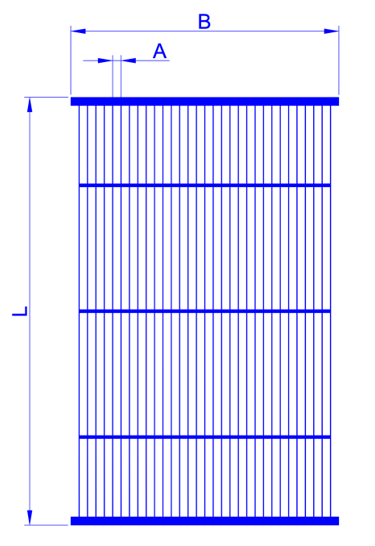

The capillary tube mats are made up of small thin capillary tubes and installed in a closed loop hydronic system. The mats are connected to an energy carrier which is circulating at efficient temperature, powered by a reverse cycle heat pump.

The capillary tube mat system is applicable for both cooling + humidity reduction and heating in one system.

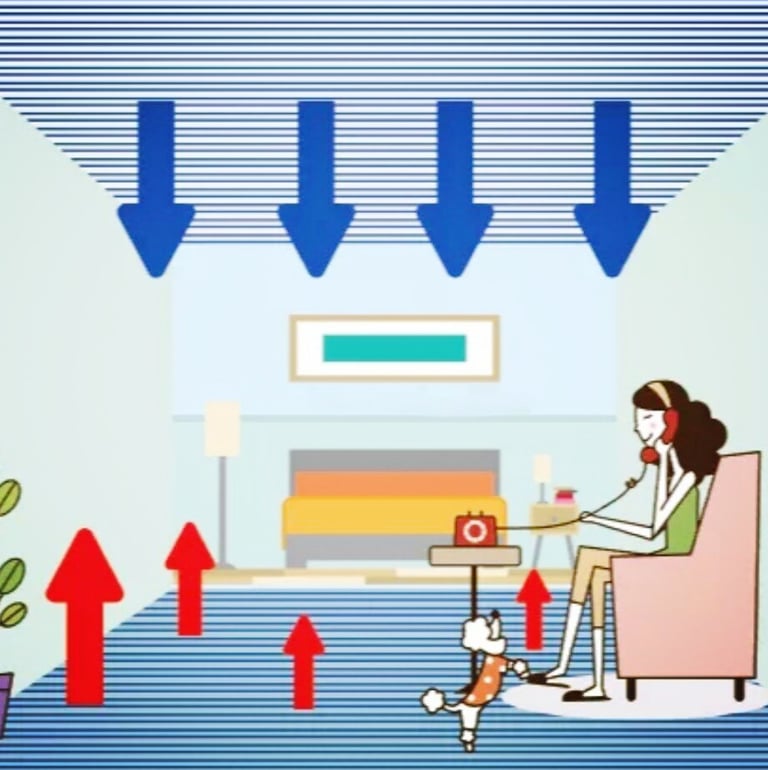

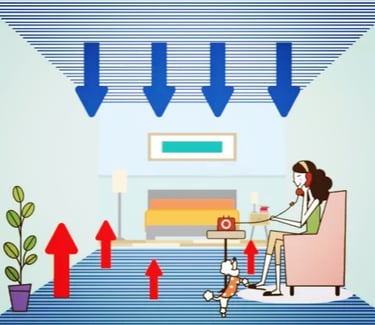

To heat or cool rooms, hot or cold water runs through the capillary tube system to exchange heat with the space air by radiation.

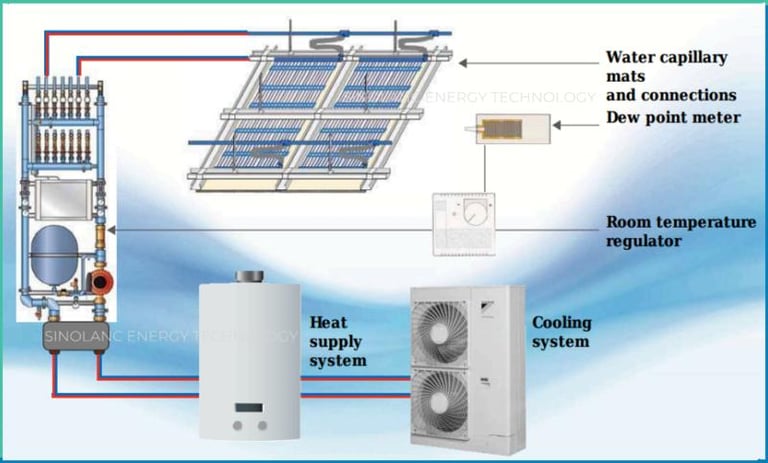

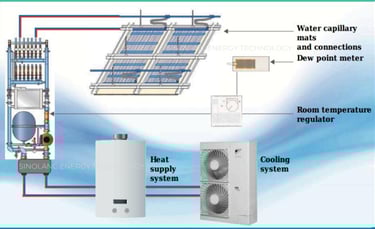

With the advantage of good flexibility, the capillary tube mats can be installed on roof, wall, and floor, under the surface decorative materials, and connected to different heat energy carriers such as heat pump, gas boiler, central heating, solar energy. etc

Capillary Ecological Air Conditioning System

• Energy efficient
  Water supplied in capillary tube mats only requires 28-32℃ for heating purpose, it reduce heating energy consumption compared with the 45-60℃ request of common floor heating pipes. It has tested the capillary system can save 30-40% consumption.

  For cooling in summer, the supply water is around 16-18℃ which is much higher than the traditional air conditioner.
  It can save 50-60% energy consumption. The combination of capillary mats with heat pump can achieved the highest outputs.

• Healthy & Comfortable
  Sinolanc capillary mats realizes the heat exchange in a form of radiation with gentle and even temperature changes,draughtfree and noiseless.

• Environment friendly
  The raw material is Polypropylene- high quality, environmentally friendly and safe plastic with excellent physical characteristics and highly recyclable.

• Space saving & Easy installation

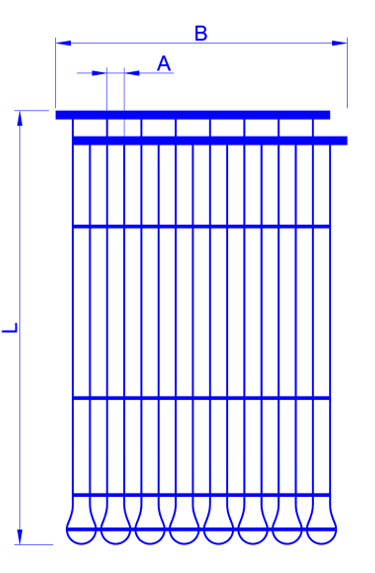

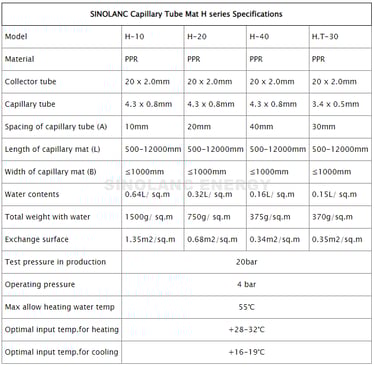

  Within the construction, the thin capillary tubes with an outer diameter of 4.3 mm only be covered with leveling or sealing compound of 10mm thickness.
  The high flexibility of the sinolanc capillary tube mats technology enables easy installation even in the most diverse structures.

Advantages Capillary Tube Mats System

• Rapid reacting
  The limited thickness minimizes the thermal resistance and leads to the heating reacting rapidly to temperature changes in just a few minutes and achieving high specific heating capacities.

• Long life & Free maintenance
  All Sinolanc capillary tube mats are produced under strict quality control with a top level of precision and safety. No maintenance required with high quality the using life of capillary mat is around 50 years

• Various Energy Solution

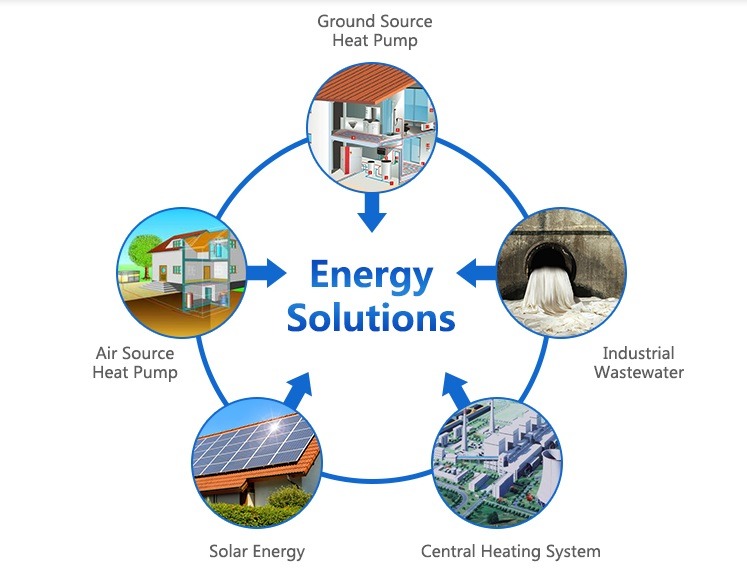

  Sinolanc capillary tube mats can be connected with air source heat pump, water source heat pump, ground source heat pump, solar energy, etc.

APPLICATION

1. Capillary tube mat can be used as independent humidity control air conditioning systems.

2. Capillary tube mat can be used to make air conditioning wall (also called gravity cycle air conditioning system), which is easy to adjust the temperature and humidity.

3. Capillary tube mat can be used for heating to replace the traditional radiator and common floor heating system, which is easier to install and has high efficiency.

4. Capillary tube mat can be used in agricultural greenhouse. Using the regenerative capacity of the soil, it can help to balance the temperature difference and improve the production efficiency.

5. Capillary tube mat can be made as the heat collector of the water resource heat pump, which can also be used to collect the residential heat of industrial waste water, can recycle the renewable resources.
