CAPILLARY TUBE MAT

RADIANT HEATING COOLING SYSTEM

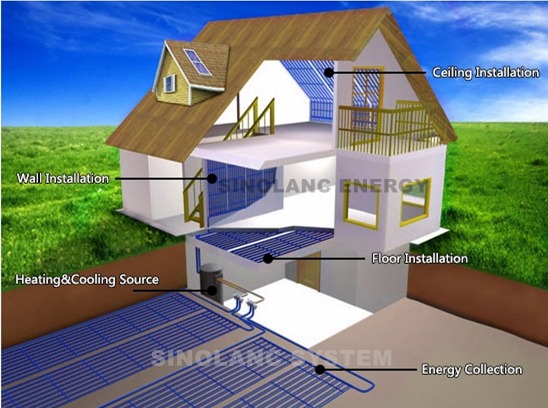

radiant heating cooling system with capillary tube mat
radiant heating cooling system with capillary tube mat

It is a closed hydronic system with circulating water with allows heating and cooling with one system.

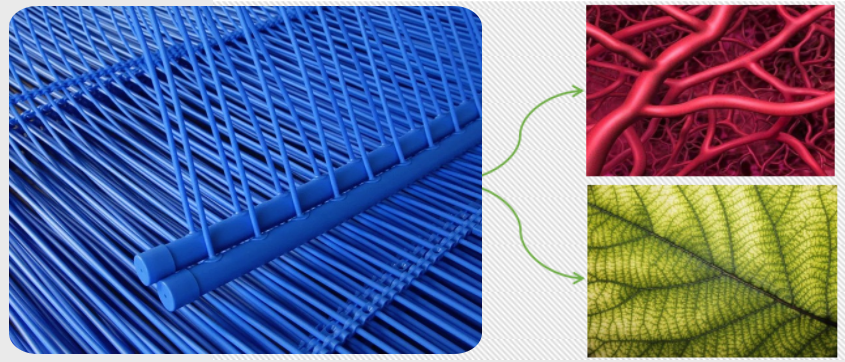

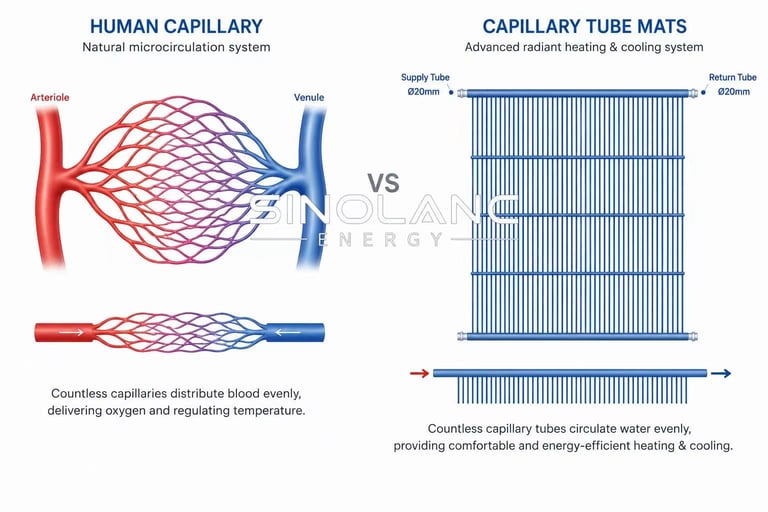

Based on a similar basic structure as human blood stream, the capillary tube mats are located just under the surface of walls, floors and ceilings.

Cool or hot water flows through the network and supplies the buildings with pleasant temperatures all year round.

Using the low-grade energy to make the high-quality life.
The energy-saving solutions for maintaining year-round thermal comfort in buildings and Creating a Healthy, Comfort, Energy efficient indoor climate.

FROM ECOLOGICAL NATURAL

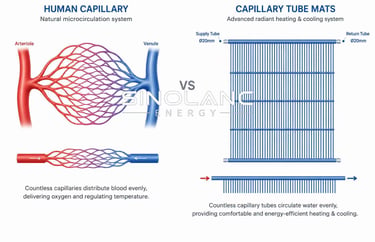

capillary mat system from ecological natural
capillary mat system from ecological natural

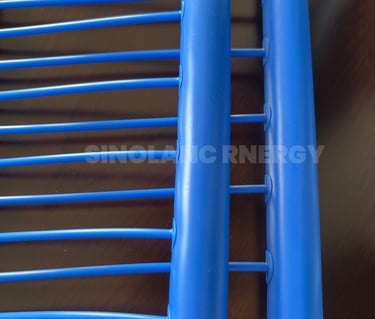

The capillary tube mat is made of pure and highly recyclable polypropylene. It consists of capillary tubes with an external diameter of only 4.3mm and two collection tubes with a diameter of 20mm. The capillary tube mat realized its water-collecting and distributing structure in the manufacturing stage. A technical breakthrough has been achieved in that one main tube is directly connected with several branch pipes through the side.

Capillary tube technology takes a completely new approach and follows nature’s example. Water-carrying capillary tube mats made of PPR are installed directly below the surface of the room enclosure surfaces, allowing smooth temperature control of ceilings, walls and flooring. The transfer of energy between users and the activated surfaces is achieved predominantly using radiation – matching the natural conditions for regulation of the heat balance of all living organisms. This is why people in rooms cooled or heated with capillary tube systems feel demonstrably more comfortable, increasing productivity.

ABOUT SINOLANC

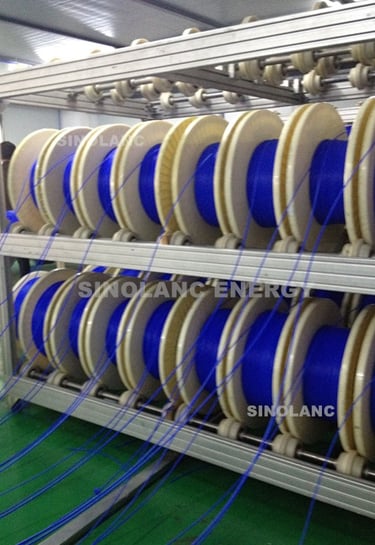

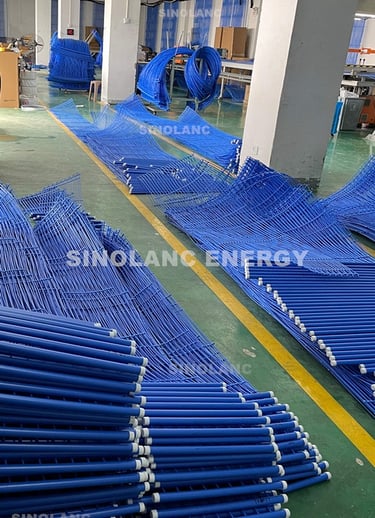

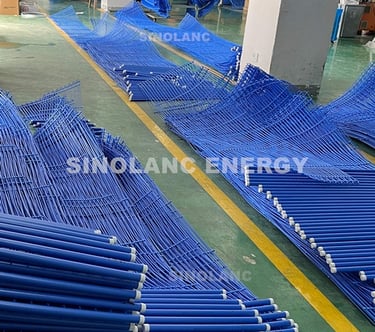

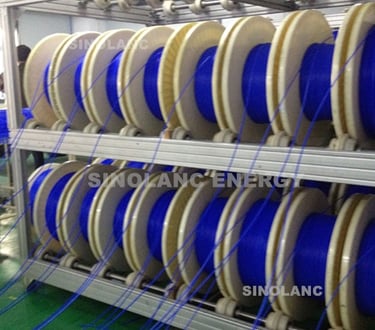

sinolanc capillary tube mats manufacturing
sinolanc capillary tube mats manufacturing

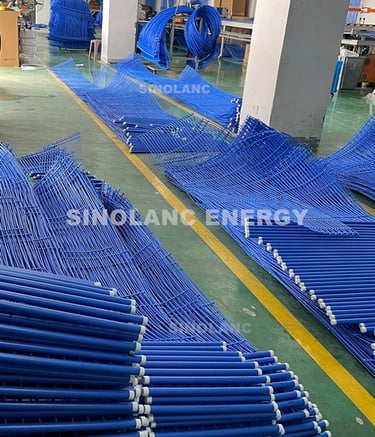

capillary tube mats supplier
capillary tube mats supplier

© SINOLANC ENERGY

16 years+

Production Experience

7 Full German

Production Lines

7000 m2

Daily Output

45 +

Export countries

Statement: All Pictures are Sinolanc factory reality shooting. If they appear on websites that are not owned by SINOLANC which are stolen. We reserve the right to pursue legal responsibility! Please all customers pay attention to distinguish!!!

Most Professional Manufacturer in CHINA

The first and largest Chinese manufacturer of capillary tube mats with the tradition for over 16 years. Owing the largest production base in China, mature production technology, skilled technicians with rich experience and professional engineers. Totally avoid quality problems caused by lack of experience

Use ONLY German Production Lines

We adopt modern fully automatic equipment and high level precision electronic control system in compliance with strict quality regulations. The advanced equipment, unique technology, experienced production and quality team ensure a very high and long quality guaranteed.

High Quality PPR Raw Material

Using only high quality PPR granules which has better rigidity and toughness from Borouge with Rohs test. The PPR material has been tested and proved to be safe with drinking water standard.

Overseas Distributors & CE Certificates

For meet the increasing demands and free from construction technical concerns, we have been establishing agents in European and Central Asian countries which have the benefits of prompt delivery and technical support. We have strict quality inspection reports and pressure test reports, and also obtained the EU CE certification.

Large output. Strict Test. Rapid Delivery

Each mat is subjected to an strict quality control before it leaves the company and guaranteed the maximum security.
Capillary tube mats are precisely prefabricated in accordance with the dimensions required for your project. Freedom of size choice.
Short-term delivery times -only 5-10 days

  • Key points monitoring

  • Five times random test a day on appearance and welding

  • 0 defect quality feedback

  • Production process optimization constantly

QUALITY CONTROL

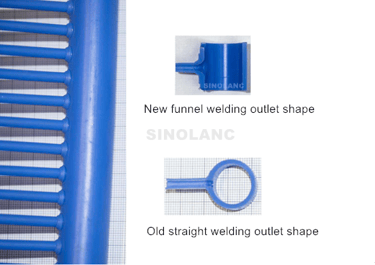

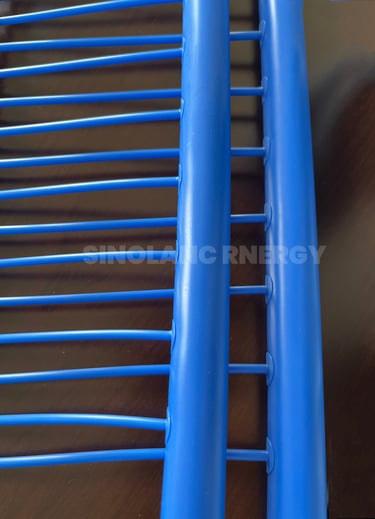

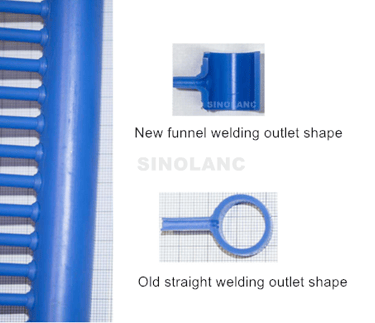

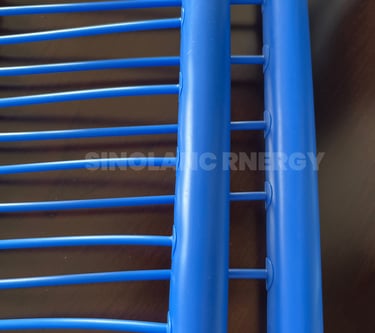

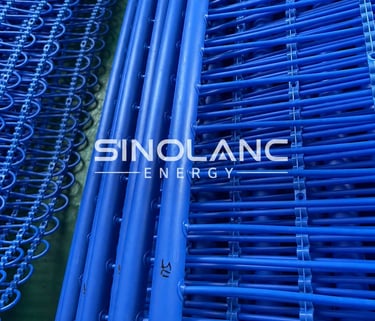

capillary tube mats new funnel welding
capillary tube mats new funnel welding

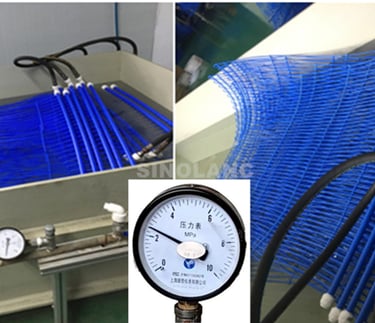

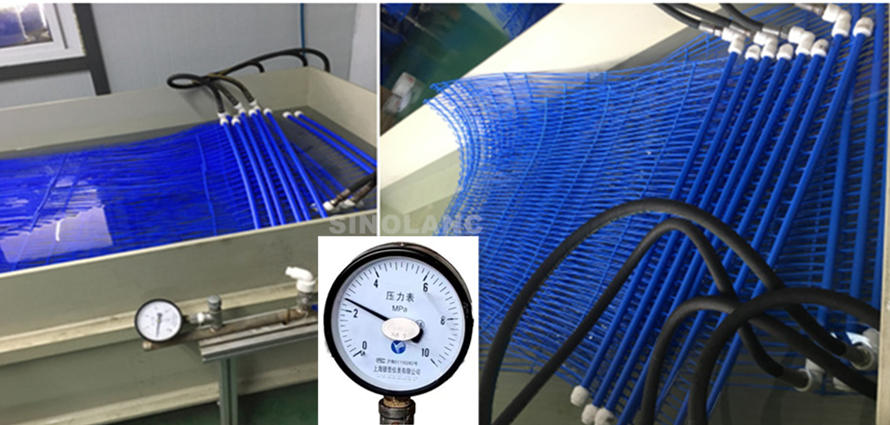

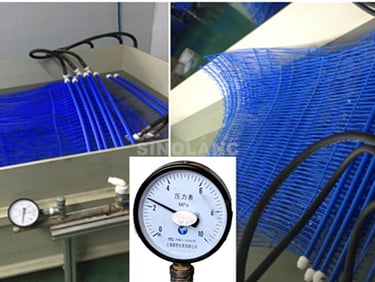

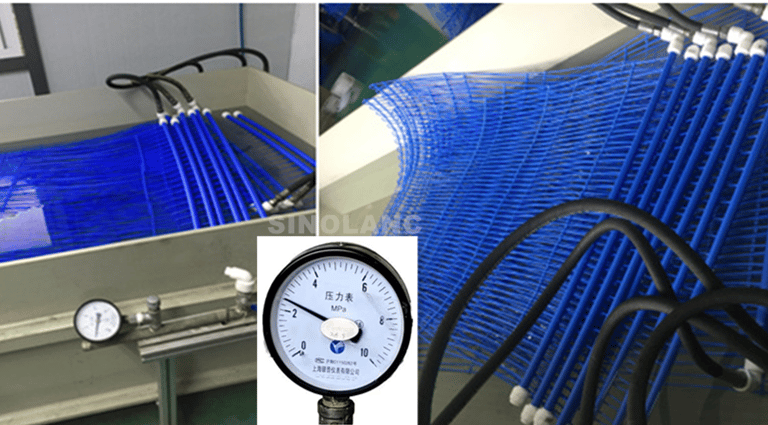

how capillary tube mats take pressure test
how capillary tube mats take pressure test

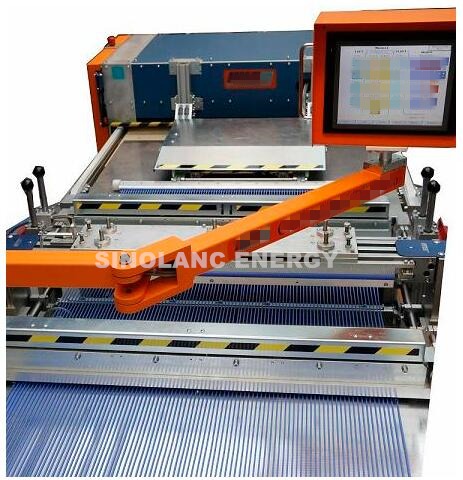

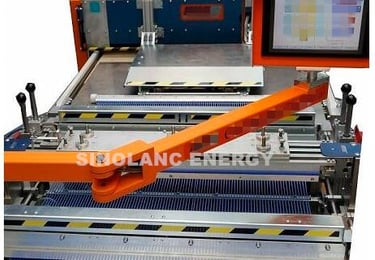

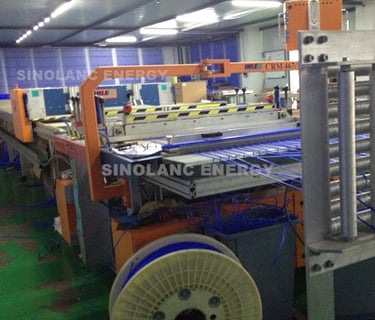

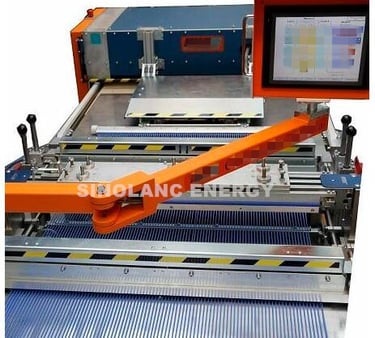

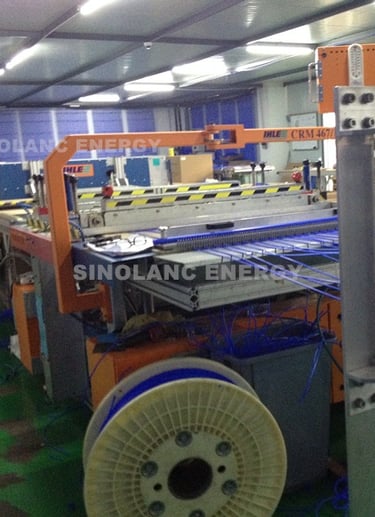

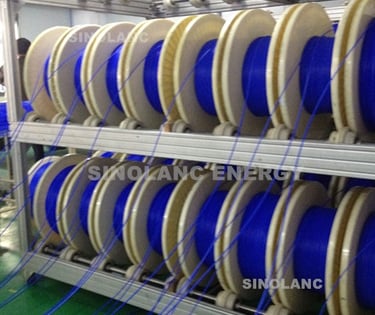

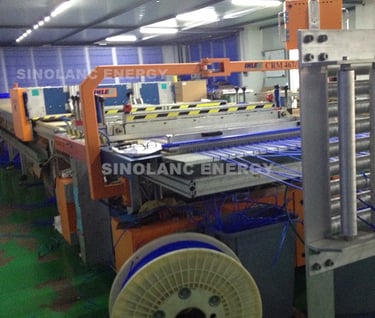

capillary tube mats production equipment
capillary tube mats production equipment
  • 100% data monitoring by auto system

  • Strict quality control team

  • Experienced welding and producing team

  • 0 defect quality management

  • 100% pressure test for every single mat.

  • Pressure test at 20 bar

  • Testing time more than 20 mins.

  • Cover the dust cap after testing

  • 100% of delivery qualification rate

© SINOLANC ENERGY

SINOLANC makes great efforts on equipment, material and standardized management to ensure the best manufacturing efficiency and quality and the long service life of our products.
We have passed ISO9001:2015 quality system certification and CE European certification.

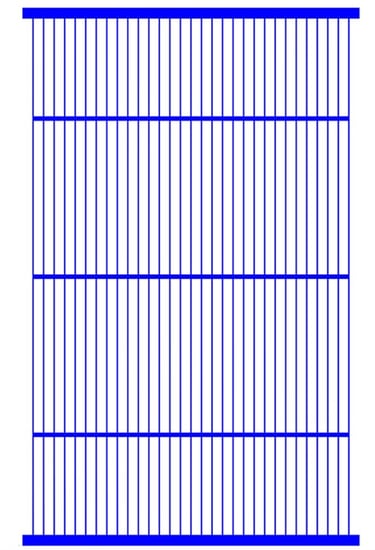

sinolanc capillary tube mat H type
sinolanc capillary tube mat H type

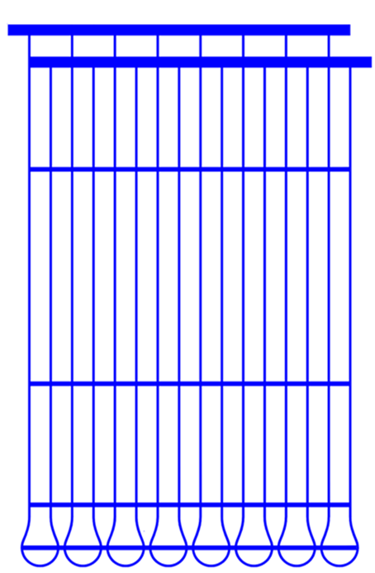

sinolanc capillary tube mat U type
sinolanc capillary tube mat U type

CAPILLARY TUBE MATS SPECIFICATIONS

  • Material: Polypropylene

  • Tube Size: Main tube: 20 x 2.0 mm Capillary tube: 4.3 x 0.8 or 3.4 x 0.5 mm

  • Mat Size: Width: max. 1000 mm
    Length: max. 12000 mm

  • Distance between capillaries: 10mm~40mm

  • Pressure:
    Test pressure: 20 bar
    Operating pressure: 4~ 6 bar

  • Temperature:
    For heating: 28 ~ 32℃
    For cooling: 16~ 19℃ (above the dew point)
    Max. temperature allowed in system: 55℃

  • Heating/Cooling Capacity:
    Underfloor heating : 100 w/m2
    Wall heating capacity: 100 w/m2
    Wall cooling capacity: 80 w/m2
    Ceiling cooling capacity: 90 w/m2
    (The specific capacity depends on the supply water temperature, installation types and related conditions.)

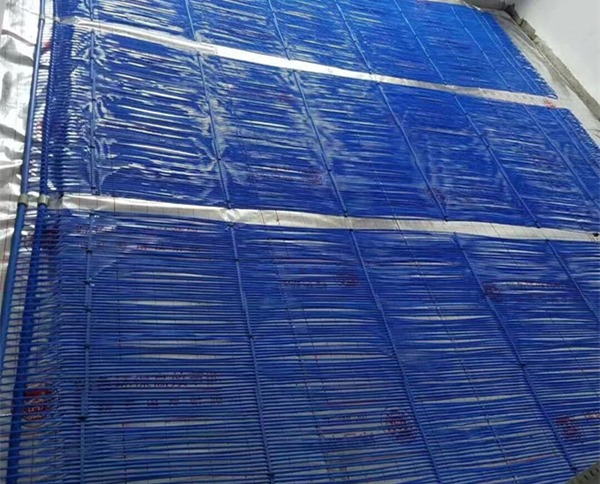

capillary tube mat floor heating-SINOLANC
capillary tube mat floor heating-SINOLANC

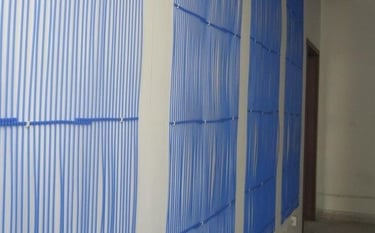

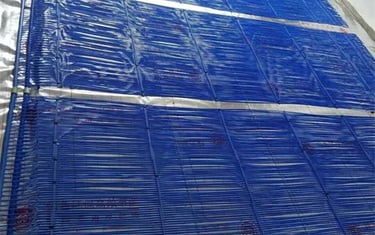

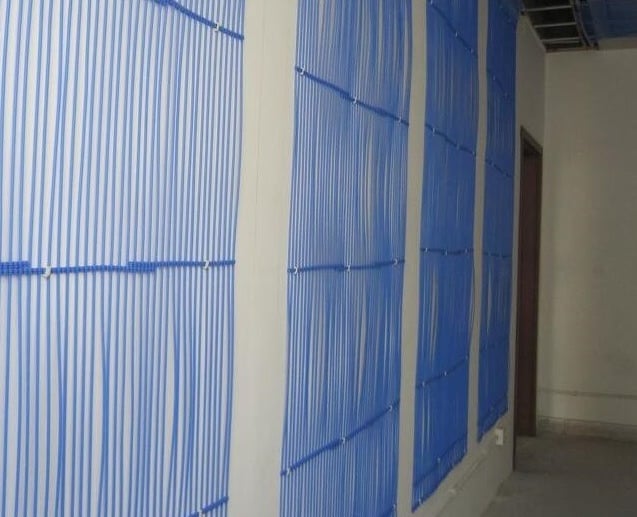

capillary mats used for wall heating
capillary mats used for wall heating

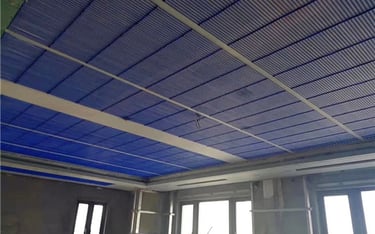

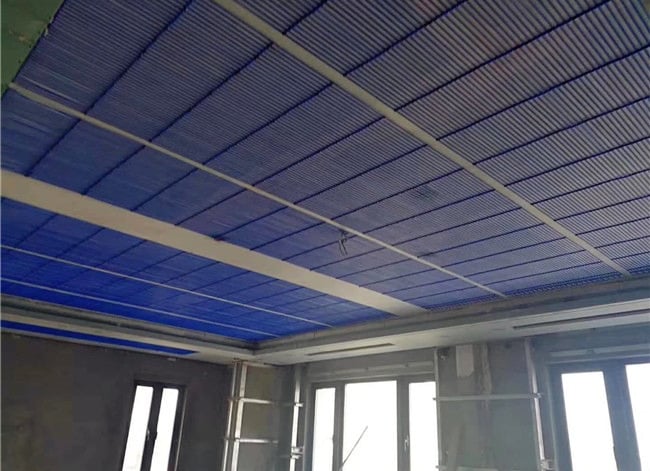

radiant ceiling cooling-SN Capillary mat
radiant ceiling cooling-SN Capillary mat
Ceiling Heating- Cooling
for plastering, plasterboard, metal panel

CAPILLARY TUBE MATS APPLICATION

Capillary tube mats ceiling system can not only be used for cooling, but also for energy-efficient heating. The implementation of ceiling heating and cooling in one system reduces operating costs.

Wall Heating- Cooling

The radiant wall capillary mats are generally carried out using the plaster method or drywall.

Application in other fields

The capillary tube mats can also be used as constant temperature control unit for places like greenhouse, swimming pool, as well as embedded in the soil as the geothermal collector.

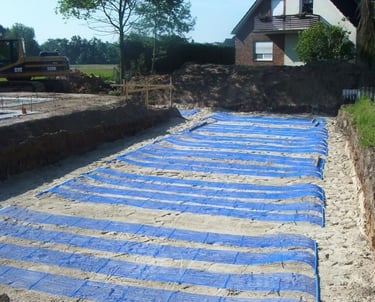

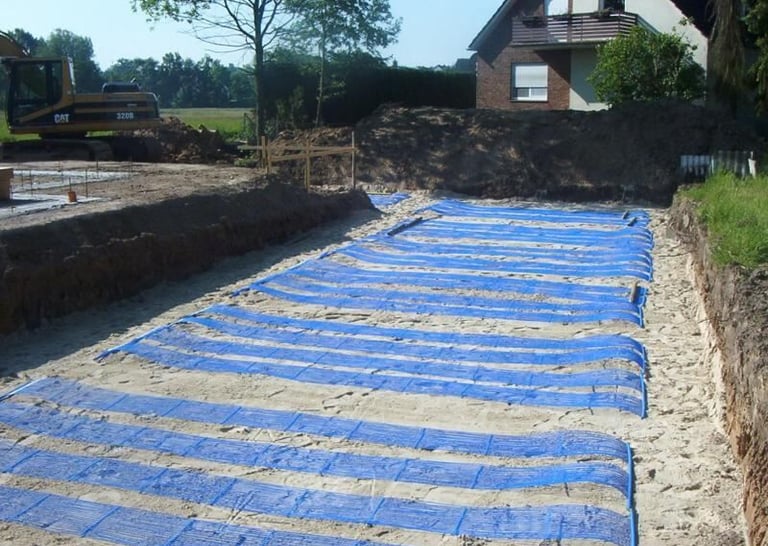

energy collector storage-capillary mats
energy collector storage-capillary mats

PROJECT CASES

Our years of experience makes us the ideal partner for your projects. We won't shy away from a challenge, but also know how to manage risks.

project-wuhu
project-wuhu

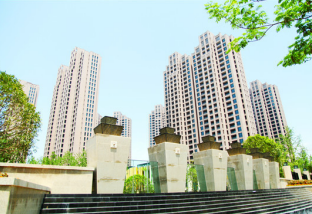

WUHU HUALUN APARTMENT 30000M2

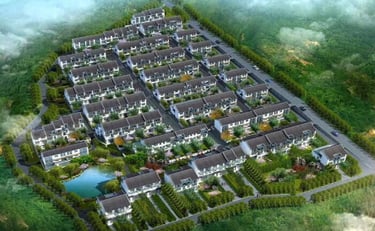

project shandong
project shandong

SHANDONG QIDONGHANFU 100000M2

Sinolanc team is constantly striving for perfection. We are lucky to work with notable and known clients, who trust us and use our products to create well-being and efficiency in an environment where live and work.

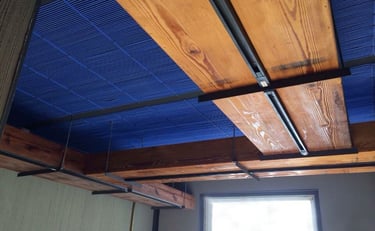

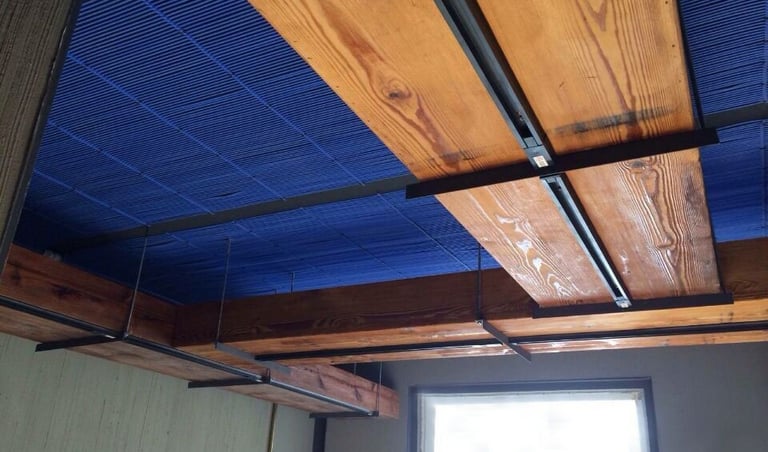

wooden ceiling radiant system with capillary mat
wooden ceiling radiant system with capillary mat

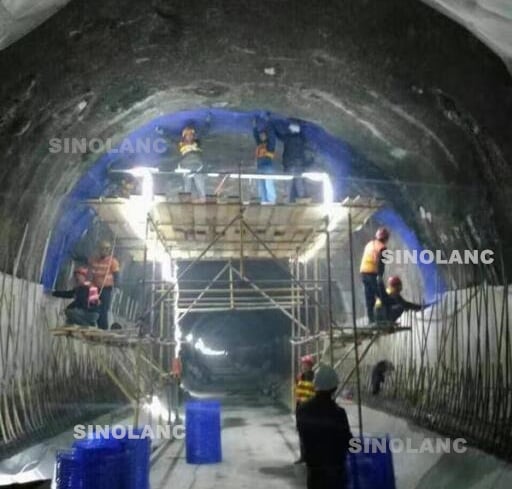

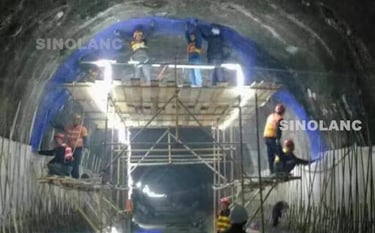

capillary tube mats applied in subway tunnel
capillary tube mats applied in subway tunnel

CONTACT US

If you're interested in hearing more about the capillary tube mats, have a business proposal, or interested in making a purchase, we'd love to hear from you.
